Clamping Stud

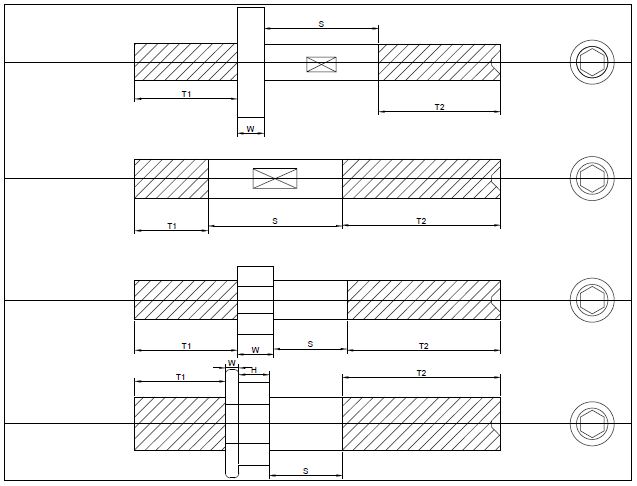

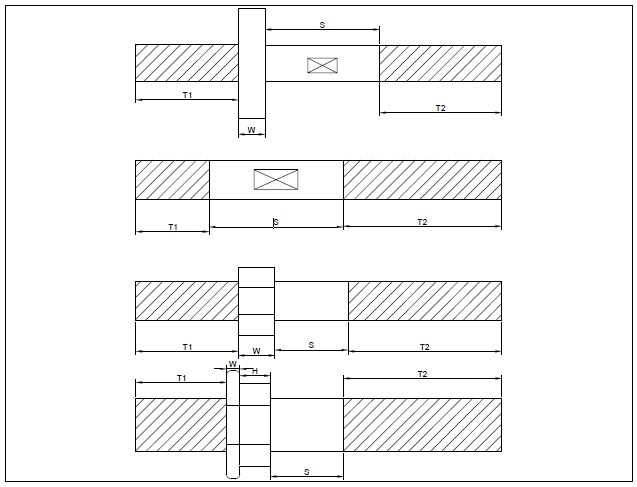

CLAMPING STUD

STUD WITH SPANNER SLOT

ITEMCODE	SLOT	SLOT THICKNESS	ONE SIDE	THREAD	LENGH	OTHER SIDE
PTCSSSM24140	24	10	55	M24	140	40
PTCSSSM24160	24	10	55	M24	160	60
PTCSSSM24180	24	10	55	M24	180	80
PTCSSSM24200	24	10	55	M24	200	85
PTCSSSM24220	24	10	55	M24	220	100
PTCSSSM24250	24	10	55	M24	250	120
PTCSSSM24300	24	10	55	M24	300	145
PTCSSSM20125	18	8	45	M20	125	40
PTCSSSM20140	18	8	45	M20	140	45
PTCSSSM20160	18	8	45	M20	160	60
PTCSSSM20180	18	8	45	M20	180	80
PTCSSSM20200	18	8	45	M20	200	115
PTCSSSM16100	14	6	35	M16	100	35
PTCSSSM16125	14	6	35	M16	125	50
PTCSSSM16160	14	6	35	M16	160	70
PTCSSSM16200	14	6	35	M16	200	90

SPECIAL HEAVY DUTY STUD WITH SPANNER SLOT

ITEMCODE	SLOT	HEAD THICKNESS	ONE SIDE	THREAD	LENGH	OTHER SIDE	THREAD
PTCSHDSSM24140	27	10	55	M24	140	40	M27
PTCSHDSSM24160	27	10	55	M24	160	60	M27
PTCSHDSSM24180	27	10	55	M24	180	80	M27
PTCSHDSSM24200	27	10	55	M24	200	85	M27
PTCSHDSSM24220	27	10	55	M24	220	100	M27
PTCSHDSSM24250	27	10	55	M24	250	120	M27
PTCSHDSSM24300	27	10	55	M24	300	145	M27
PTCSHDSSM20125	22	8	45	M20	125	40	M22
PTCSHDSSM20140	22	8	45	M20	140	45	M22
PTCSHDSSM20160	22	8	45	M20	160	60	M22
PTCSHDSSM20180	22	8	45	M20	180	80	M22
PTCSHDSSM20200	22	8	45	M20	200	115	M22
PTCSHDSSM16100	17	6	35	M16	100	35	M18
PTCSHDSSM16125	17	6	35	M16	125	50	M18
PTCSHDSSM16160	17	6	35	M16	160	70	M18
PTCSHDSSM16200	17	6	35	M16	200	90	M18

STUD WITH SPANNER HEX

ITEMCODE	HEX	HEAD THICKNESS	ONE SIDE	THREAD	LENGH	OTHER SIDE
PTCHSHM24140	27	14	55	M24	140	40
PTCHSHM24160	27	14	55	M24	160	60
PTCHSHM24180	27	14	55	M24	180	80
PTCHSHM24200	27	14	55	M24	200	85
PTCHSHM24220	27	14	55	M24	220	100
PTCHSHM24250	27	14	55	M24	250	120
PTCHSHM24300	27	14	55	M24	300	145
PTCHSHM20125	22	12	45	M20	125	40
PTCHSHM20140	22	12	45	M20	140	45
PTCHSHM20160	22	12	45	M20	160	60
PTCHSHM20180	22	12	45	M20	180	80
PTCHSHM20200	22	12	45	M20	200	115
PTCHSHM16100	19	10	35	M16	100	35
PTCHSHM16125	19	10	35	M16	125	50
PTCHSHM16160	19	10	35	M16	160	70
PTCHSHM16200	19	10	35	M16	200	90

SPECIAL HEAVY DUTY STUD WITH SPANNER HEX

ITEMCODEH35A1A21:H36	HEX	HEAD THICKNESS	ONE SIDE	THREAD	LENGH	OTHER SIDE	THREAD
PTCHDHSHM24140	27	14	55	M24	140	40	M27
PTCHDHSHM24160	27	14	55	M24	160	60	M27
PTCHDHSHM24180	27	14	55	M24	180	80	M27
PTCHDHSHM24200	27	14	55	M24	200	85	M27
PTCHDHSHM24220	27	14	55	M24	220	100	M27
PTCHDHSHM24250	27	14	55	M24	250	120	M27
PTCHDHSHM24300	27	14	55	M24	300	145	M27
PTCHDHSHM20125	22	12	45	M20	125	40	M22
PTCHDHSHM20140	22	12	45	M20	140	45	M22
PTCHDHSHM20160	22	12	45	M20	160	60	M22
PTCHDHSHM20180	22	12	45	M20	180	80	M22
PTCHDHSHM20200	22	12	45	M20	200	115	M22
PTCHDHSHM16100	19	10	35	M16	100	35	M18
PTCHDHSHM16125	19	10	35	M16	125	50	M18
PTCHDHSHM16160	19	10	35	M16	160	70	M18
PTCHDHSHM16200	19	10	35	M16	200	90	M18

ALLEN HEAD STUD SPANNER HEX WASHER

ITEMCODE	HEX	HEAD THICKNESS	ONE SIDE	THREAD	LENGH	OTHER SIDE
PTAHCCSHSW24140	27	14	50	M24	140	35
PTAHCCSHSW24160	27	14	50	M24	160	55
PTAHCCSHSW24180	27	14	50	M24	180	75
PTAHCCSHSW24200	27	14	50	M24	200	80
PTAHCCSHSW24220	27	14	50	M24	220	95
PTAHCCSHSW24250	27	14	50	M24	250	115
PTAHCCSHSW24300	27	14	50	M24	300	140
PTAHCCSHSW20125	22	12	40	M20	125	35
PTAHCCSHSW20140	22	12	40	M20	140	40
PTAHCCSHSW20160	22	12	40	M20	160	55
PTAHCCSHSW20180	22	12	40	M20	180	75
PTAHCCSHSW20200	22	12	40	M20	200	110
PTAHCCSHSW16100	19	10	30	M16	100	30
PTAHCCSHSW16125	19	10	30	M16	125	45
PTAHCCSHSW16160	19	10	30	M16	160	65
PTAHCCSHSW16200	19	10	30	M16	200	85

SPECIAL HEAVY DUTY ALLEN HEAD CAP STUD WITH SPANNER HEX AND WASHER

ITEMCODE	HEX	HEAD THICKNESS	ONE SIDE	THREAD	LENGH	OTHER SIDE	THREAD
PTAHCSHCSHSW24140	27	14	50	M24	140	35	M27
PTAHCSHCSHSW24160	27	14	50	M24	160	55	M27
PTAHCSHCSHSW24180	27	14	50	M24	180	75	M27
PTAHCSHCSHSW24200	27	14	50	M24	200	80	M27
PTAHCSHCSHSW24220	27	14	50	M24	220	95	M27
PTAHCSHCSHSW24250	27	14	50	M24	250	115	M27
PTAHCSHCSHSW24300	27	14	50	M24	300	140	M27
PTAHCSHCSHSW20125	22	12	40	M20	125	35	M22
PTAHCSHCSHSW20140	22	12	40	M20	140	40	M22
PTAHCSHCSHSW20160	22	12	40	M20	160	55	M22
PTAHCSHCSHSW20180	22	12	40	M20	180	75	M22
PTAHCSHCSHSW20200	22	12	40	M20	200	110	M22
PTAHCSHCSHSW16100	19	10	30	M16	100	30	M18
PTAHCSHCSHSW16125	19	10	30	M16	125	45	M18
PTAHCSHCSHSW16160	19	10	30	M16	160	65	M18
PTAHCSHCSHSW16200	19	10	30	M16	200	85	M18

STUD SPANNER SLOT WITH WASHER

ITEMCODE	SLOT	SLOT THICKNESS	ONE SIDE	THREAD	LENGH	OTHER SIDE
PTCSSSWM24140	24	10	50	M24	140	35
PTCSSSWM24160	24	10	50	M24	160	55
PTCSSSWM24180	24	10	50	M24	180	75
PTCSSSWM24200	24	10	50	M24	200	80
PTCSSSWM24220	24	10	50	M24	220	95
PTCSSSWM24250	24	10	50	M24	250	115
PTCSSSWM24300	24	10	50	M24	300	140
PTCSSSWM20125	18	8	40	M20	125	35
PTCSSSWM20140	18	8	40	M20	140	40
PTCSSSWM20160	18	8	40	M20	160	55
PTCSSSWM20180	18	8	40	M20	180	75
PTCSSSWM20200	18	8	40	M20	200	110
PTCSSSWM16100	14	6	30	M16	100	30
PTCSSSWM16125	14	6	30	M16	125	45
PTCSSSWM16160	14	6	30	M16	160	65
PTCSSSWM16200	14	6	30	M16	200	85

SPECIAL HEAVY DUTY STUD WITH SPANNER SLOT AND WASHER

ITEMCODE	SLOT	HEAD THICKNESS	ONE SIDE	THREAD	LENGH	OTHER SIDE	THREAD
PTCSHDSSWM24140	27	10	50	M24	140	35	M27
PTCSHDSSWM24160	27	10	50	M24	160	55	M27
PTCSHDSSWM24180	27	10	50	M24	180	75	M27
PTCSHDSSWM24200	27	10	50	M24	200	80	M27
PTCSHDSSWM24220	27	10	50	M24	220	95	M27
PTCSHDSSWM24250	27	10	50	M24	250	115	M27
PTCSHDSSWM24300	27	10	50	M24	300	140	M27
PTCSHDSSWM20125	22	8	40	M20	125	35	M22
PTCSHDSSWM20140	22	8	40	M20	140	40	M22
PTCSHDSSWM20160	22	8	40	M20	160	55	M22
PTCSHDSSWM20180	22	8	40	M20	180	75	M22
PTCSHDSSWM20200	22	8	40	M20	200	110	M22
PTCSHDSSWM16100	17	6	30	M16	100	30	M18
PTCSHDSSWM16125	17	6	30	M16	125	45	M18
PTCSHDSSWM16160	17	6	30	M16	160	65	M18
PTCSHDSSWM16200	17	6	30	M16	200	85	M18

ALLEN HEAD STUD WITH HEX SPANNER

ITEMCODE	HEX	HEAD THICKNESS	ONE SIDE	THREAD	LENGH	OTHER SIDE
PTAHCCSHS24140	27	14	50	M24	140	35
PTAHCCSHS24160	27	14	50	M24	160	55
PTAHCCSHS24180	27	14	50	M24	180	75
PTAHCCSHS24200	27	14	50	M24	200	80
PTAHCCSHS24220	27	14	50	M24	220	95
PTAHCCSHS24250	27	14	50	M24	250	115
PTAHCCSHS24300	27	14	50	M24	300	140
PTAHCCSHS20125	22	12	40	M20	125	35
PTAHCCSHS20140	22	12	40	M20	140	40
PTAHCCSHS20160	22	12	40	M20	160	55
PTAHCCSHS20180	22	12	40	M20	180	75
PTAHCCSHS20200	22	12	40	M20	200	110
PTAHCCSHS16100	19	10	30	M16	100	30
PTAHCCSHS16125	19	10	30	M16	125	45
PTAHCCSHS16160	19	10	30	M16	160	65
PTAHCCSHS16200	19	10	30	M16	200	85

SPECIAL HEAVY DUTY ALLEN HEAD CAP STUD WITH SPANNER HEX

ITEMCODE	HEX	HEAD THICKNESS	ONE SIDE	THREAD	LENGH	OTHER SIDE	THREAD
PTAHCSHCSHS24140	27	14	50	M24	140	35	M27
PTAHCSHCSHS24160	27	14	50	M24	160	55	M27
PTAHCSHCSHS24180	27	14	50	M24	180	75	M27
PTAHCSHCSHS24200	27	14	50	M24	200	80	M27
PTAHCSHCSHS24220	27	14	50	M24	220	95	M27
PTAHCSHCSHS24250	27	14	50	M24	250	115	M27
PTAHCSHCSHS24300	27	14	50	M24	300	140	M27
PTAHCSHCSHS20125	22	12	40	M20	125	35	M22
PTAHCSHCSHS20140	22	12	40	M20	140	40	M22
PTAHCSHCSHS20160	22	12	40	M20	160	55	M22
PTAHCSHCSHS20180	22	12	40	M20	180	75	M22
PTAHCSHCSHS20200	22	12	40	M20	200	110	M22
PTAHCSHCSHS16100	19	10	30	M16	100	30	M18
PTAHCSHCSHS16125	19	10	30	M16	125	45	M18
PTAHCSHCSHS16160	19	10	30	M16	160	65	M18
PTAHCSHCSHS16200	19	10	30	M16	200	85	M18

STUD ALLEN HD SPANNER SLOT WASHER

ITEMCODE	SLOT	SLOT THICKNESS	ONE SIDE	THREAD	LENGH	OTHER SIDE
PTCSSSWM24140	24	10	50	M24	140	35
PTCSSSWM24160	24	10	50	M24	160	55
PTCSSSWM24180	24	10	50	M24	180	75
PTCSSSWM24200	24	10	50	M24	200	80
PTCSSSWM24220	24	10	50	M24	220	95
PTCSSSWM24250	24	10	50	M24	250	115
PTCSSSWM24300	24	10	50	M24	300	140
PTCSSSWM20125	18	8	40	M20	125	35
PTCSSSWM20140	18	8	40	M20	140	40
PTCSSSWM20160	18	8	40	M20	160	55
PTCSSSWM20180	18	8	40	M20	180	75
PTCSSSWM20200	18	8	40	M20	200	110
PTCSSSWM16100	14	6	30	M16	100	30
PTCSSSWM16125	14	6	30	M16	125	45
PTCSSSWM16160	14	6	30	M16	160	65
PTCSSSWM16200	14	6	30	M16	200	85

ALLEN CAP HEAD SPECIAL HEAVY DUTY STUD WITH SPANNER SLOT AND WASHER

ITEMCODE	SLOT	HEAD THICKNESS	ONE SIDE	THREAD	LENGH	OTHER SIDE	THREAD
PTCSHDSSWM24140	27	10	50	M24	140	35	M27
PTCSHDSSWM24160	27	10	50	M24	160	55	M27
PTCSHDSSWM24180	27	10	50	M24	180	75	M27
PTCSHDSSWM24200	27	10	50	M24	200	80	M27
PTCSHDSSWM24220	27	10	50	M24	220	95	M27
PTCSHDSSWM24250	27	10	50	M24	250	115	M27
PTCSHDSSWM24300	27	10	50	M24	300	140	M27
PTCSHDSSWM20125	22	8	40	M20	125	35	M22
PTCSHDSSWM20140	22	8	40	M20	140	40	M22
PTCSHDSSWM20160	22	8	40	M20	160	55	M22
PTCSHDSSWM20180	22	8	40	M20	180	75	M22
PTCSHDSSWM20200	22	8	40	M20	200	110	M22
PTCSHDSSWM16100	17	6	30	M16	100	30	M18
PTCSHDSSWM16125	17	6	30	M16	125	45	M18
PTCSHDSSWM16160	17	6	30	M16	160	65	M18
PTCSHDSSWM16200	17	6	30	M16	200	85	M18

STUD HEX SPANNER WITH WASHER

ITEMCODE	HEX	HEAD THICKNESS	ONE SIDE	THREAD	LENGH	OTHER SIDE
PTCSHSM24140	27	14	55	M24	140	40
PTCSHSM24160	27	14	55	M24	160	60
PTCSHSM24180	27	14	55	M24	180	80
PTCSHSM24200	27	14	55	M24	200	85
PTCSHSM24220	27	14	55	M24	220	100
PTCSHSM24250	27	14	55	M24	250	120
PTCSHSM24300	27	14	55	M24	300	145
PTCSHSM20125	22	12	45	M20	125	40
PTCSHSM20140	22	12	45	M20	140	45
PTCSHSM20160	22	12	45	M20	160	60
PTCSHSM20180	22	12	45	M20	180	80
PTCSHSM20200	22	12	45	M20	200	115
PTCSHSM16100	19	10	35	M16	100	35
PTCSHSM16125	19	10	35	M16	125	50
PTCSHSM16160	19	10	35	M16	160	70
PTCSHSM16200	19	10	35	M16	200	90

SPECIAL HEAVY DUTY STUD WITH HEX SPANNER AND WASHER

ITEMCODE	HEX	HEAD THICKNESS	ONE SIDE	THREAD	LENGH	OTHER SIDE	THREAD
PTCSHHSM24140	27	14	55	M24	140	40	M27
PTCSHHSM24160	27	14	55	M24	160	60	M27
PTCSHHSM24180	27	14	55	M24	180	80	M27
PTCSHHSM24200	27	14	55	M24	200	85	M27
PTCSHHSM24220	27	14	55	M24	220	100	M27
PTCSHHSM24250	27	14	55	M24	250	120	M27
PTCSHHSM24300	27	14	55	M24	300	145	M27
PTCSHHSM20125	22	12	45	M20	125	40	M22
PTCSHHSM20140	22	12	45	M20	140	45	M22
PTCSHHSM20160	22	12	45	M20	160	60	M22
PTCSHHSM20180	22	12	45	M20	180	80	M22
PTCSHHSM20200	22	12	45	M20	200	115	M22
PTCSHHSM16100	19	10	35	M16	100	35	M18
PTCSHHSM16125	19	10	35	M16	125	50	M18
PTCSHHSM16160	19	10	35	M16	160	70	M18
PTCSHHSM16200	19	10	35	M16	200	90	M18

STUD ALLEN HD SPANNER SLOT

ITEMCODE	SLOT	SLOT THICKNESS	ONE SIDE	THREAD	LENGH	OTHER SIDE
PTCSSSM24140	24	10	55	M24	140	40
PTCSSSM24160	24	10	55	M24	160	60
PTCSSSM24180	24	10	55	M24	180	80
PTCSSSM24200	24	10	55	M24	200	85
PTCSSSM24220	24	10	55	M24	220	100
PTCSSSM24250	24	10	55	M24	250	120
PTCSSSM24300	24	10	55	M24	300	145
PTCSSSM20125	18	8	45	M20	125	40
PTCSSSM20140	18	8	45	M20	140	45
PTCSSSM20160	18	8	45	M20	160	60
PTCSSSM20180	18	8	45	M20	180	80
PTCSSSM20200	18	8	45	M20	200	115
PTCSSSM16100	14	6	35	M16	100	35
PTCSSSM16125	14	6	35	M16	125	50
PTCSSSM16160	14	6	35	M16	160	70
PTCSSSM16200	14	6	35	M16	200	90

SPECIAL HEAVY DUTY STUD ALLEN CAP HEAD WITH SPANNER SLOT

ITEMCODE	SLOT	HEAD THICKNESS	ONE SIDE	THREAD	LENGH	OTHER SIDE	THREAD
PTCSHDSSM24140	27	10	55	M24	140	40	M27
PTCSHDSSM24160	27	10	55	M24	160	60	M27
PTCSHDSSM24180	27	10	55	M24	180	80	M27
PTCSHDSSM24200	27	10	55	M24	200	85	M27
PTCSHDSSM24220	27	10	55	M24	220	100	M27
PTCSHDSSM24250	27	10	55	M24	250	120	M27
PTCSHDSSM24300	27	10	55	M24	300	145	M27
PTCSHDSSM20125	22	8	45	M20	125	40	M22
PTCSHDSSM20140	22	8	45	M20	140	45	M22
PTCSHDSSM20160	22	8	45	M20	160	60	M22
PTCSHDSSM20180	22	8	45	M20	180	80	M22
PTCSHDSSM20200	22	8	45	M20	200	115	M22
PTCSHDSSM16100	17	6	35	M16	100	35	M18
PTCSHDSSM16125	17	6	35	M16	125	50	M18
PTCSHDSSM16160	17	6	35	M16	160	70	M18
PTCSHDSSM16200	17	6	35	M16	200	90	M18
